- gdsfactory.pack(component_list: Sequence[str | Callable[[...], Component] | dict[str, Any] | DKCell], spacing: float = 10.0, aspect_ratio: tuple[float, float] = (1.0, 1.0), max_size: tuple[float | None, float | None] = (None, None), sort_by_area: bool = True, density: float = 1.1, precision: float = 0.01, text: TextFunction | None = None, text_prefix: str = '', text_mirror: bool = False, text_rotation: int = 0, text_offsets: tuple[tuple[float, float], ...] = ((0, 0),), text_anchors: tuple[Literal['ce', 'cw', 'nc', 'ne', 'nw', 'sc', 'se', 'sw', 'center', 'cc'], ...] = ('cc',), name_prefix: str | None = None, rotation: int = 0, h_mirror: bool = False, v_mirror: bool = False, add_ports_prefix: bool = True, add_ports_suffix: bool = False)list[Component]
Pack a list of components into as few Components as possible.
- Parameters
component_list– list or tuple.spacing– Minimum distance between adjacent shapes.aspect_ratio– (width, height) ratio of the rectangular bin.max_size– Limits the size into which the shapes will be packed.sort_by_area– Pre-sorts the shapes by area.density– Values closer to 1 pack tighter but require more computation.precision– Desired precision for rounding vertex coordinates.text– Optional function to add text labels.text_prefix– for labels. For example. ‘A’ will produce ‘A1’, ‘A2’, …text_mirror– if True mirrors text.text_rotation– Optional text rotation.text_offsets– relative to component size info anchor. Defaults to center.text_anchors– relative to component (ce cw nc ne nw sc se sw center cc).name_prefix– for each packed component (avoids the Unnamed cells warning). Note that the suffix contains a uuid so the name will not be deterministic.rotation– optional component rotation in degrees.h_mirror– horizontal mirror in y axis (x, 1) (1, 0). This is the most common.v_mirror– vertical mirror using x axis (1, y) (0, y).add_ports_prefix– adds port names with prefix.add_ports_suffix– adds port names with suffix.

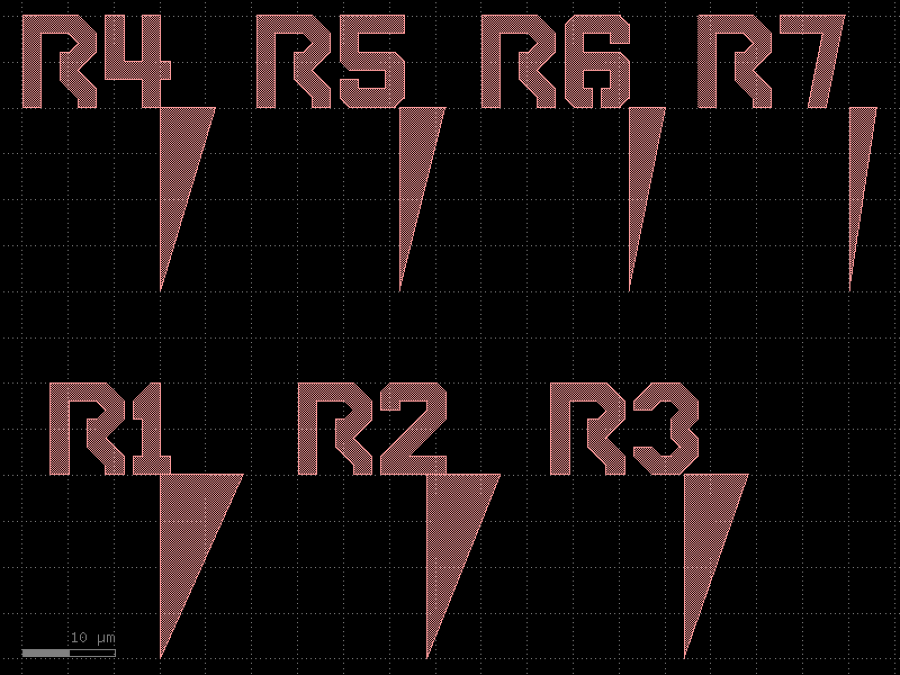

import gdsfactory as gf from functools import partial components = [gf.components.triangle(x=i) for i in range(1, 10)] c = gf.pack( components, spacing=20.0, max_size=(100, 100), text=partial(gf.components.text, justify="center"), text_prefix="R", name_prefix="demo", text_anchors=["nc"], text_offsets=[(-10, 0)], v_mirror=True, ) c[0].plot()
