gdsfactory.path.arc - GDSFactory

gdsfactory.path.arc(radius: float | None = 10.0, angle: float = 90, npoints: int | None = None, start_angle: float = -90)Path

Returns a radial arc.

Parameters

radius – minimum radius of curvature.
angle – total angle of the curve.
npoints – Number of points used per 360 degrees. Defaults to pdk.bend_points_distance.
start_angle – initial angle of the curve for drawing, default -90 degrees.

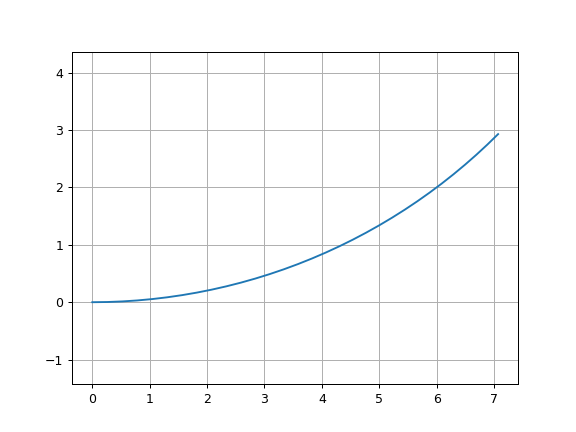

import gdsfactory as gf

p = gf.path.arc(radius=10, angle=45)
p.plot()
