Due to the recent release of KFactory v1.0.0, we have had to make some small changes to the API of the following classes:

Component
Port
ComponentReference
ComponentReferences

GDSFactory v9 is not a big change but it makes ports and instance units consistent with each other.

Main changes¶

Note the migration changes:

port.dangle has been renamed to port.orientation
- port.angle represents the angle 90 degrees multiples.
- port.orientation represents the angle in degrees.
CHECK_INSTANCES has been renamed to CheckInstances
- Most often used in the @cell decorator.
Port(..., layer: tuple[int, int]) has been replaced with Port(..., layer: int)
- layer now represents the layer index in the KLayout layer stack.
- To update your code you can do Port(..., layer=gf.kcl.layout.layer(*layer))
- We also recommend just using Component.add_port, with which you can specify the layer as tuple.
Most of the d prefix attributes and functions can now be used without the d prefix.
ComponentReference.parent has been removed, you should use ComponentReference.cell instead.
ComponentReference.info has been removed, you should use ComponentReference.cell.info instead.

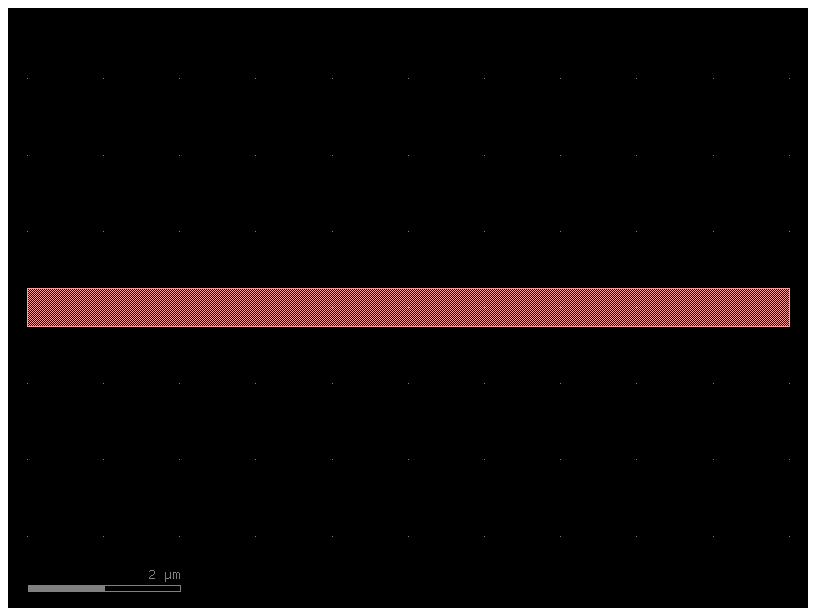

import gdsfactory as gf

c = gf.components.straight(length=10)
c.pprint_ports()

print('port orientation in degrees', c.ports['o2'].orientation)
print('port x in um', c.ports['o2'].x)
print('port dx in um (decimal)', c.ports['o2'].dx)
print('port ix in integer (database units)', c.ports['o2'].ix)

port orientation in degrees 0.0
port x in um 10.0
port dx in um (decimal) 10.0
port ix in integer (database units) 10000

c = gf.Component()
ref = c << gf.c.straight()

ref.xmin = 10

print('reference x in um', ref.x)
print('reference dx in um (decimal)', ref.dx)
print('reference ix in integer (database units)', ref.ix)

reference x in um 15.0
reference dx in um (decimal) 15.0
reference ix in integer (database units) 15000
