gdsfactory.path.spiral_archimedean

Returns an Archimedean spiral.

Parameters

• min_bend_radius – Inner radius of the spiral.

• separation – Separation between the loops in um.

• number_of_loops – number of loops.

• npoints – number of Points.

import gdsfactory as gf

p = gf.path.spiral_archimedean(min_bend_radius=5, separation=2, number_of_loops=3, npoints=200)

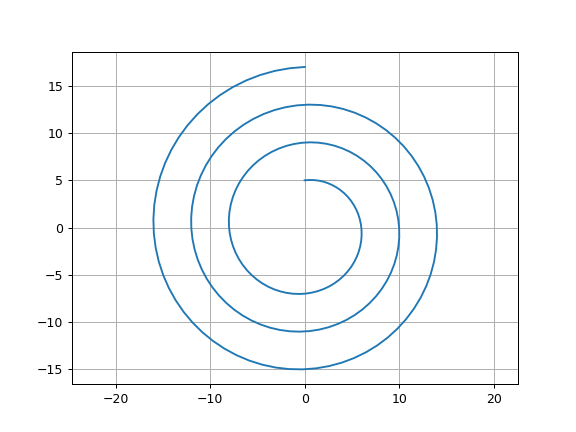

p.plot()
