gdsfactory.path.smooth

gdsfactory.path.smooth(points: ~numpy.ndarray[tuple[int, ...], ~numpy.dtype[~numpy.floating[~typing.Any]]] | ~gdsfactory.path.Path, radius: float = 4.0, bend: ~collections.abc.Callable[[...], ~gdsfactory.path.Path] = <function euler>, **kwargs: ~typing.Any)Path

Returns a smooth Path from a series of waypoints.

Parameters

points – array-like[N][2] List of waypoints for the path to follow.
radius – radius of curvature, passed to bend.
bend – bend function that returns a path that round corners.
kwargs – Extra keyword arguments that will be passed to bend.

import gdsfactory as gf

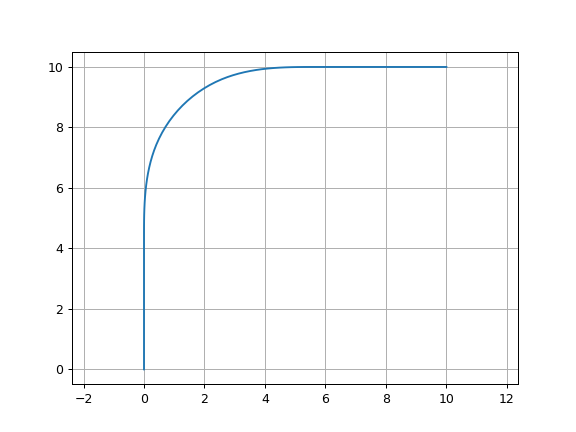

p = gf.path.smooth(([0, 0], [0, 10], [10, 10]))
p.plot()
