gdsfactory.routing.route_quad

Routes a basic quadrilateral polygon directly between two ports.

Parameters

• component – Component to add the route to.

• port1 – Port to start route.

• port2 – Port objects to end route.

• width1 – Width of quadrilateral at ports. If None, uses port widths.

• width2 – Width of quadrilateral at ports. If None, uses port widths.

• layer – Layer to put the route on.

• manhattan_target_step – if not none, min step to manhattanize the polygon

import gdsfactory as gf

c = gf.Component()
pad1 = c << gf.components.pad(size=(50, 50))
pad2 = c << gf.components.pad(size=(10, 10))
pad2.movex(100)
pad2.movey(50)
gf.routing.route_quad(
    c,
    pad1.ports["e2"],
    pad2.ports["e4"],
    width1=None,
    width2=None,
)

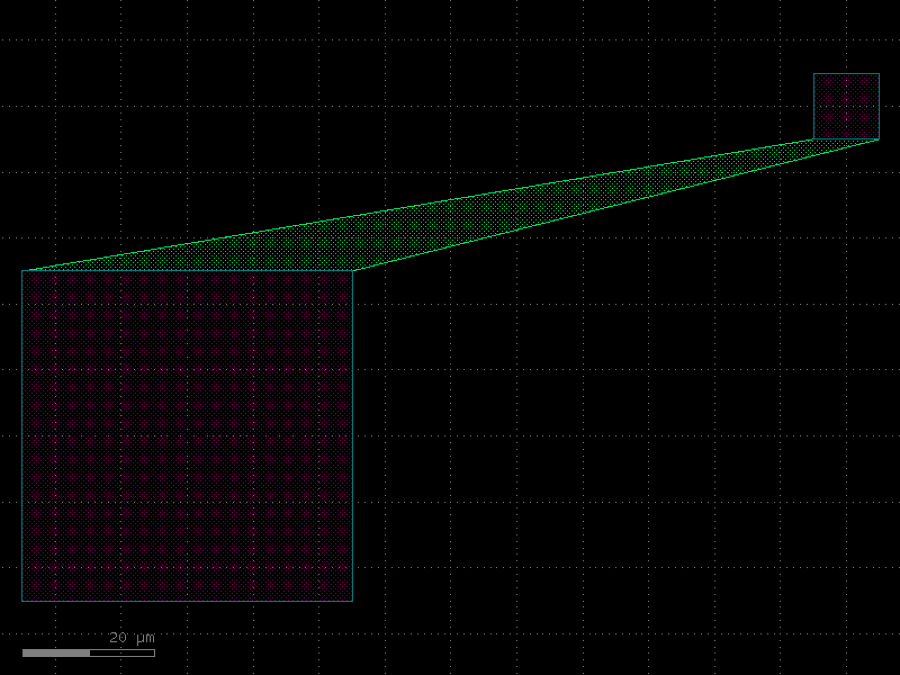

c.plot()
