gdsfactory.routing.route_ports_to_side

Routes ports to a given side.

Parameters

• component – component to route.

• cross_section – cross_section to use for routing.

• ports – ports to route to a side.

• side – ‘north’, ‘south’, ‘east’ or ‘west’.

• x – position to route ports for east/west. None, uses most east/west value.

• y – position to route ports for south/north. None, uses most north/south value.

• kwargs – additional arguments to pass to the routing function.

Keyword Arguments

• radius – in um.

• separation – in um.

• routing. (extend_left, extend_right for south/north)

• routing.

Returns

with routing elements. List of ports: of the new ports.

Return type

List of routes

import gdsfactory as gf

c = gf.Component()
dummy = gf.components.nxn(north=2, south=2, west=2, east=2)
sides = ["north", "south", "east", "west"]
d = 100
positions = [(0, 0), (d, 0), (d, d), (0, d)]

for pos, side in zip(positions, sides):
    dummy_ref = c << dummy
    dummy_ref.move(pos)
    routes, ports = gf.routing.route_ports_to_side(
        component=c, side=side, ports=dummy_ref.ports, cross_section="strip"
    )

    for i, p in enumerate(ports):
        c.add_port(name=f"{side[0]}{i}", port=p)

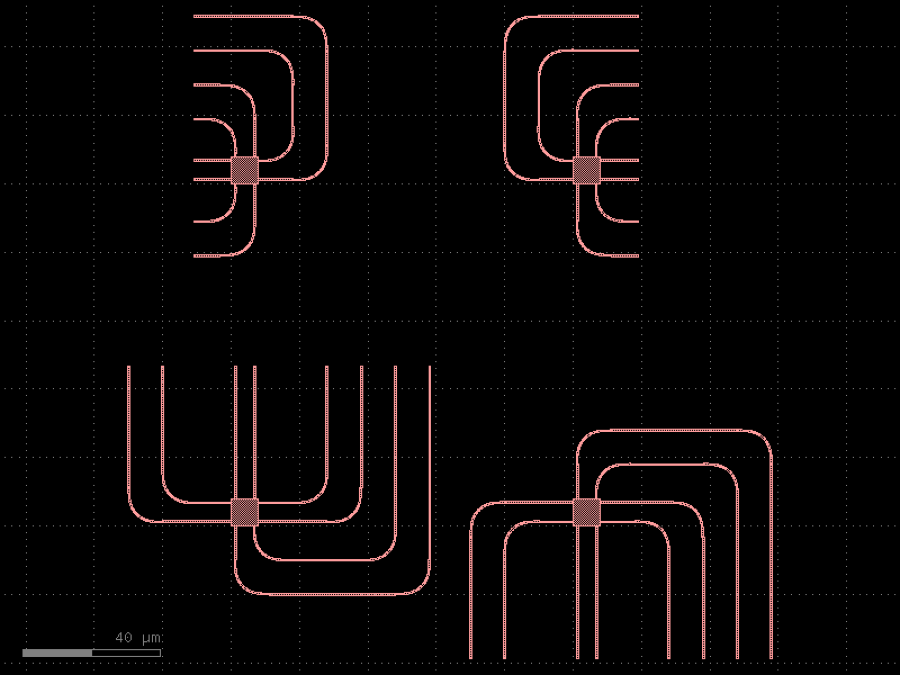

c.plot()
