- gdsfactory.routing.add_electrical_pads_top(component: str | ~collections.abc.Callable[[...], ~gdsfactory.component.Component] | dict[str, ~typing.Any] | ~kfactory.kcell.DKCell, direction: ~typing.Literal['top', 'right'] = 'top', spacing: tuple[float, float] = (0.0, 100.0), pad_array: str | ~collections.abc.Callable[[...], ~gdsfactory.component.Component] | dict[str, ~typing.Any] | ~kfactory.kcell.DKCell = 'pad_array', select_ports: ~collections.abc.Callable[[...], ~collections.abc.Sequence[~kfactory.port.DPort]] = functools.partial(<function select_ports>, port_type='electrical'), port_names: ~collections.abc.Sequence[str] | None = None, layer: tuple[int, int] | str | int | ~kfactory.layer.LayerEnum = 'MTOP', **kwargs: ~typing.Any)Component
Returns new component with electrical ports connected to top pad array.
- Parameters
component– to route.direction– sets direction of the array (top or right).spacing– component to pad spacing.pad_array– function for pad_array.select_ports– function to select electrical ports.port_names– optional port names. Overrides select_ports.layer– for the routes.kwargs– additional arguments.
- Keyword Arguments
ports– Dict[str, Port] a port dict {port name: port}.prefix– select ports with port name prefix.suffix– select ports with port name suffix.orientation– select ports with orientation in degrees.width– select ports with port width.layers_excluded– List of layers to exclude.port_type– select ports with port type (optical, electrical, vertical_te).clockwise– if True, sort ports clockwise, False: counter-clockwise.

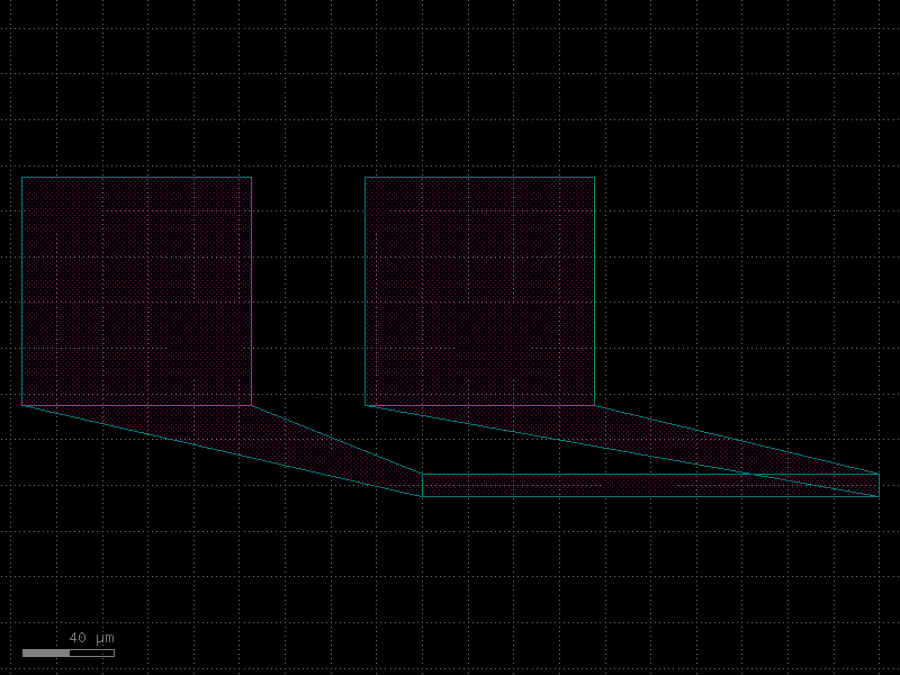

import gdsfactory as gf c = gf.components.wire_straight(length=200.) cc = gf.routing.add_electrical_pads_top(component=c, spacing=(-150, 30)) cc.plot()
